About This

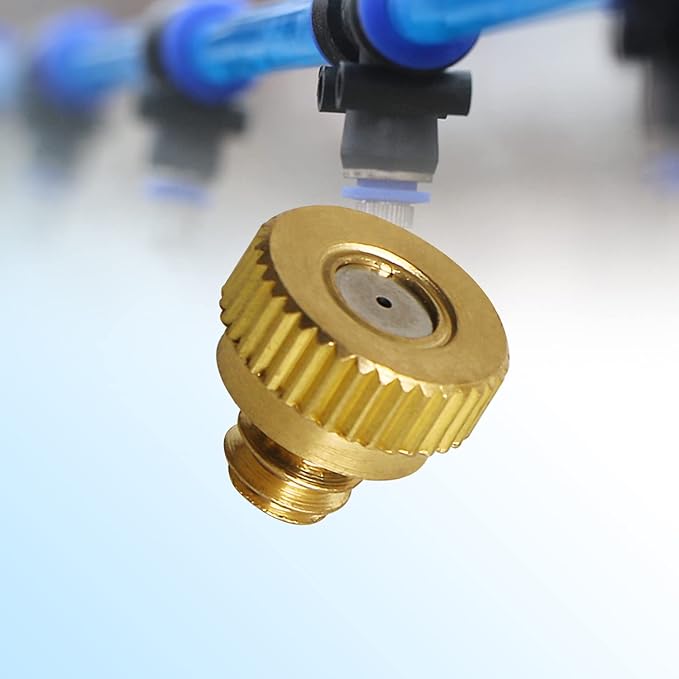

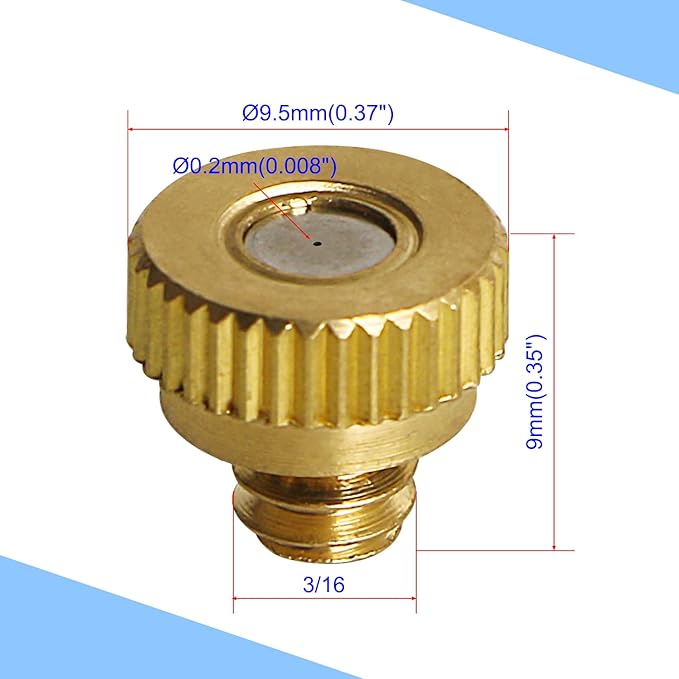

• Misting Nozzles Brass Specification: Thread type: G 3/16" male thread, Spray orifice diameter: 0.2mm / 0.008", Outer Diameter: ø9.5mm / ø0.37”, Length: 9mm / 0.35”.
• Widely Application: Misting sprayer nozzle is helpful for atomized water flow. It is very suitable for garden irrigation, greenhouses, smog systems, crop nutrient supply, fountains, landscape greening, sprinklers, vegetable and flower temperature control and other fields, which to achieve atomized water flow, humidification, water saving, mosquito prevention, dust, noise reduction. Even the simultaneous use of multiple misting nozzles can create a movie-like fairyland effect.

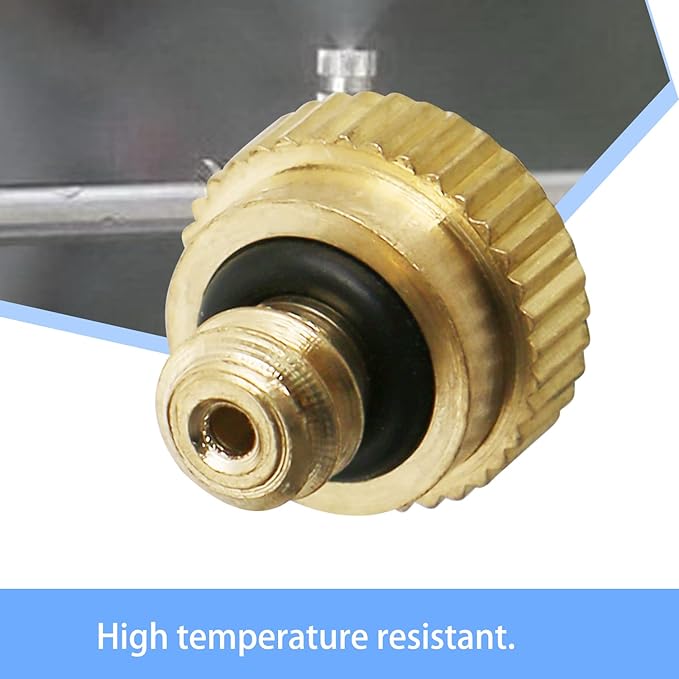

• Material: The brass material is high grade and durable, surface passivation technology, corrosion-resistant, long working life, internal stainless steel nozzle port is not easy to rust, use precision equipment to drill tiny orifices and long atomization distance, reaching 3-7um, high temperature resistance, precision processing.

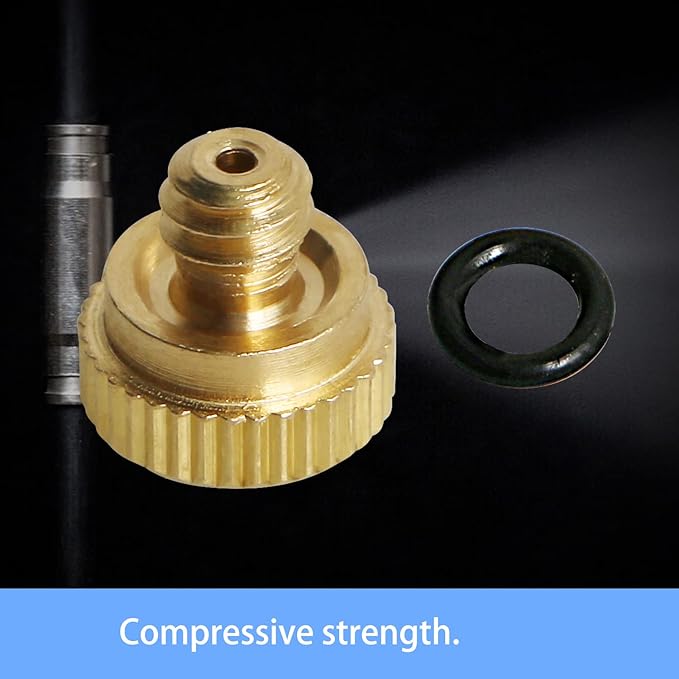

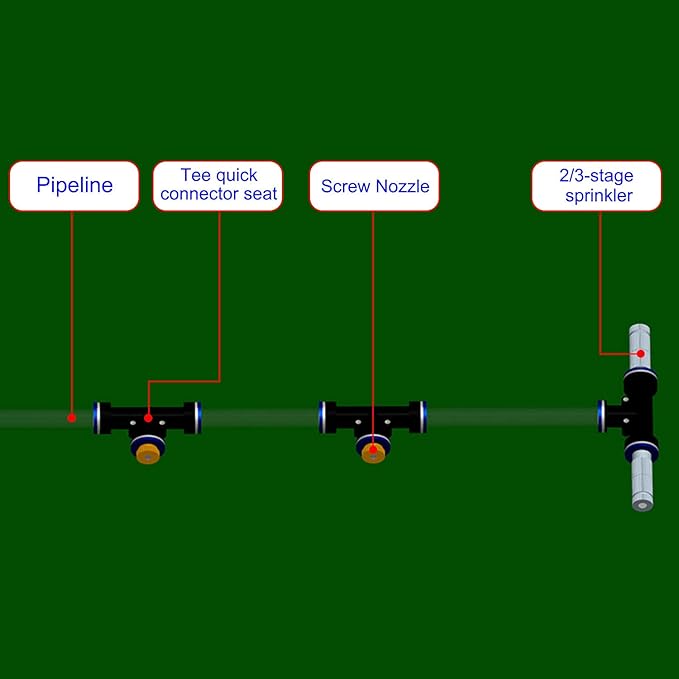

• Features: Minimal water yse of 1/2 gal per nozzle. Working pressure: 5-20kg / 70-140psi. The misting nozzle terminal thread design is precisely matched with the pipe opening and is easy to install. The internal O-ring is made of high density NBR, which has good sealing performance and anti-leakage. Superfine orifice nozzle is beneficial to provide high impact and ensures that the spray water / air flow is concentrated and uniform.

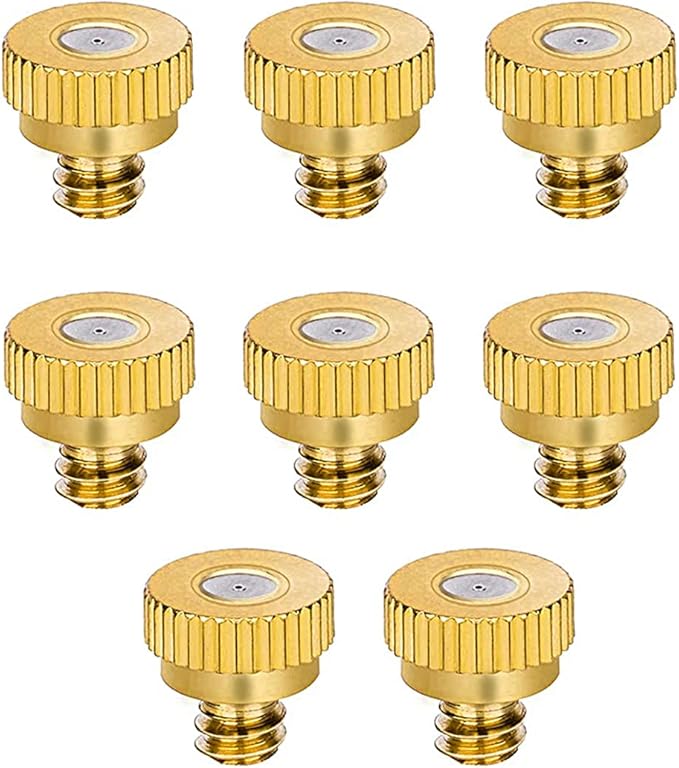

• Note: Brass misting nozzles should be ensured that the high-pressure liquid or gas used is purified and filtered in advance to prevent clogging, causing frequent damage and replacement of nozzles. Package: 8 Pcs G 3/16" male sprayer misting nozzle.

Overview

• Material : Brass
• Brand : Aopin
• Exterior Finish : Stainless Steel
• Outlet Connection Type : G Connector
• Manufacturer : Aopin-Hardware
• UPC : 658099018354
